IV. Federal Measures of Service Quality - ARMIS and MCOT Data

There are two major sets of Federal measures of service quality. The first set, known as the ARMIS measures, has been in place since 1987. More recently, as a condition of large telecommunications mergers, the FCC adopted additional service quality measures, known as MCOT measures. We now turn our attention to these measures of service quality.

A. ARMIS Measures

The FCC requires the carriers to submit reports on several aspects of service quality, and the results for relevant years appear in the record of this proceeding.⁶⁰ The Automated Reporting Management Information System (ARMIS) data stem from FCC Common Carrier Docket No. 87-313, which implemented service quality reporting requirements for local exchange carriers such as Pacific and Verizon. In 1991, the FCC added specific reports to collect service quality and network infrastructure information.

The ARMIS 43-05 report contains service quality performance measures which track, among other things, whether Pacific or Verizon meet their installation commitments for residential and business customers, trouble reports and repair intervals (e.g., both initial and repeat trouble reports, and the time required to dispatch and complete repairs in response to trouble reports), and switch downtime incidents.⁶¹ While there are no performance standards associated with these reports, they track very important service quality measures.

The ARMIS 43-06 report tracks customer perceptions of Pacific's and Verizon's service quality and will be discussed in the Section entitled "Survey Data and Customer Satisfaction".

B. Accuracy of Data

1. General Issues with Pacific's Data

A key issue in the proceeding concerned the accuracy of the service quality data that Pacific reports to the FCC as part of its ARMIS reporting obligations. ORA claims that even where Pacific reports positive ARMIS results, the results are unreliable because of errors in the underlying data. Initially, ORA claimed Pacific provided ORA inaccurate installation data for the period 1998-2001. It later changed that assertion to limit the period of claimed inaccuracy to 1998-99, and we limit consideration of the accuracy of Pacific's data to this time period.⁶²

ORA relied principally on the work of Linette Young in this area. Ms. Young downloaded Pacific's raw data into a database format, and then compared it to Pacific's summary data as reported in ARMIS. Where there were inconsistencies across these two sets of data, ORA assumed the ARMIS reports were inaccurate. ORA made many corrections to the data over time as Pacific pointed out problems.

Ultimately, it became apparent that the data mismatches that ORA found were due not to Pacific's misrepresentations, but rather to differences between the raw data ORA examined and the data Pacific uses to report to regulators. For example, Pacific modifies its raw data to remove certain types of telephone services that the ARMIS regulatory requirements do not include. We find, therefore, that ORA did not establish that Pacific misreports its installation service results. Therefore, we deny ORA's recommendation that we conduct an audit of Pacific's historic installation data to determine the extent of data error and its subsequent impact on reported service quality results during the NRF period. We do not agree that such an audit is appropriate, since we conclude that ORA did not show that Pacific's installation data are inaccurate.⁶³

However, this incident illustrates the difficulties that arise when interactions between a utility and its regulators become needlessly adversarial. Pacific should have been far more helpful to ORA in pointing out problems with Pacific's data up front. Pacific knew that ORA had requested raw data to allow it to test Pacific's results.⁶⁴ ORA, on the other hand, could have simply asked Pacific why the raw data did not match the ARMIS data. Instead, ORA conducted its analysis without any collegial interaction with Pacific, and Pacific responded by pointing out flaws after receiving ORA's testimony. This approach to regulation wastes Commission time and results in regulatory drama, but little more. Most importantly, it hinders the development of a clear evidentiary record.

As it was, ORA had to change its analysis each time Pacific explained problems in translating its raw data to reports made for regulatory purposes. In the end, the proceeding could have been much more productive had all such translation errors been resolved beforehand.

We next address ORA's specific allegations regarding the accuracy of Pacific's data.

2. Pacific's Data Concerning Installation Orders Require Clarification

ORA claims its analysis shows that Pacific closes installation orders before they are complete. This would have the effect of systematically understating installation intervals in regulatory reports. ORA bases its conclusion on its examination of four informal complaints from residential customers who ordered multiple telephone lines at the same time. These lines were to be installed at the same address on the same commitment date. Ms. Young testified that when it was discovered there were not sufficient facilities available to install both lines, "apparently what occurred was Pacific installed one line, closed the order and then reopened or initiated a second order for the second line." ORA is speculating on this point in its use of the term "apparently what occurred." Pacific pointed out that ORA was speculating, and also stated "lack of facilities for four customers does not constitute a widespread problem."

We agree that there is not enough evidence in the record for us to conclude that Pacific is closing installation orders prematurely. Because the record is unclear on this issue, we order Pacific to file and serve data in the form of a compliance filing in this docket that affirmatively addresses this point within 30 days of the effective date of this decision. Pacific shall answer the following questions in its submission:

a. Has Pacific at any time during the period 1990-2002 closed installation orders containing multiple lines to be installed on the same order after a portion of - but not all - the lines were installed?

b. If the answer to the previous question is yes, produce an annual summary of the number of such orders.

c. If Pacific reports that any multi-line order was closed before all lines associated with that order were installed, explain in detail how Pacific accounts for such orders when calculating its installation intervals for purposes of any regulatory reporting requirements.

3. Allegation that Pacific's Reports Contain Erroneous Duplicate Records Has No Factual Basis

ORA also argued that the presence of "duplicate" records among the data Pacific provided it indicates there are errors in Pacific's data. However, ORA states in this regard that "ORA does not claim that all duplicate records are erroneous records,"⁶⁵ and indeed later appears to concede that "the duplicate records should be included" in Pacific's calculation of its installation intervals.⁶⁶ ORA also confusingly asserts that, [t]he "erroneous duplicate records" that Pacific refers to are the same anomalous records (orders for basic service that do not contain commitment dates), which Pacific has previously claimed are not erroneous records. After having argued for the inclusion of the duplicate and anomalous records, Pacific cannot now claim that these `erroneous duplicate records' are erroneous."⁶⁷

It appears from its statement that ORA no longer claims there is a problem with Pacific's data due to the presence of duplicate records, and we find that this allegation has no factual basis

4. Allegation that Pacific's Reports Contain Erroneous "Anomalous Records" Has No Factual Basis

ORA also claims there is a problem with "anomalous records" - records without "commit dates" (dates on which Pacific committed it would complete an installation). ORA's witness believed these records were suspicious based on her belief that "no order for services could flow through Pacific's systems without a commitment date." She claims Pacific told her of this restriction several times, but submitted no written evidence in the record of such a representation by Pacific. Indeed, the evidence is to the contrary. As Pacific points out, it is appropriate that certain orders - related to "supersedures" where a new resident at an address takes over the phone service of the existing customer - not contain "commit dates."

5. Verizon's Data Are Accurate

ORA raised similar issues concerning Verizon's data. ORA asserts that Verizon's data includes duplicate data, that data fails to track across different data bases, that data on installation intervals is unreliable, that the data on the number of commitments met is in error, and that Verizon closes service orders too soon.

Verizon successfully responded to each of these challenges.

We find that ORA's challenges to Verizon's data almost identical to their challenges to Pacific's and suffer from the same deficiencies. We reject ORA's challenges to Verizon's data for essentially the same reasons.

Although our experience with regulation makes us sympathetic to the complexities of data reporting and analysis, we find that many of the allegations arise from simple misinterpretations by ORA of the data presented to ORA by Verizon. For example, ORA alleged that any installation order that was reopened within 60 days represented a premature closing of the service record by Verizon. In response, Verizon noted that this is a common occurrence and explained by a variety of phenomena, and Verizon explained each of the examples used by ORA to illustrate its allegation. Thus, ORA's allegation of misreporting of data was shown to have no validity.

Our purpose in an administrative proceeding such as this is to develop an evidentiary record that supports reasonable decisionmaking. As we noted above, professional collaboration between regulator and the regulated on data matters, in particular, serves the public interest better than adversarial interactions.

C. Comparison of ARMIS Results With Other Carriers

Pacific's witness Dr. Hauser includes a comparison of Pacific's performance for the ARMIS 43-05 measures with the average performance of a "reference group" of the top ten local exchange carriers based on the number of total access lines in 2001. Dr. Hauser asserts that this comparison shows that Pacific is doing well relative to other LECs that are similar in size and scope. (Ex. 2B: 354 at 25). Dr. Hauser acknowledges variations in data methodologies across LECs that make comparisons among LECs "difficult to interpret." (Id. at 20.)

In comments, TURN and ORA argue that because of differences in measurement methodologies among carriers, it is improper for the Commission to rely on Pacific's comparison to the reference group. Both parties point to D.01-12-021, in which the Commission, agreeing with Pacific's contentions in that docket, concluded that, because of differences between companies in recording and processing data, it is not possible to make meaningful comparisons among carriers.

As we noted previously, there are flaws and limitations with virtually each of the various measures of service quality we are examining in this decision. This is particularly true of the reference group comparison. Even its proponent, Pacific's Dr. Hauser, does not dispute that there are serious questions about the comparability of ARMIS data among carriers. Dr. Hauser states:

Although general rules cover how ARMIS data are reported, these rules do not require each LEC to collect or process its data using a uniform methodology. Therefore, comparisons of Pacific's ARMIS measures with other LECs can be difficult to interpret because of the variations in data methodologies across LECs. (Ex. 2B: 354 at 20).

Dr. Hauser goes on to note that changes by individual carriers in their data methodologies over time can also render the comparisons "difficult to interpret." (Id.; see also id. at 22).

It was precisely because of the differences in collecting and processing service quality data among carriers that we previously agreed with Pacific (and disagreed with ORA) that ARMIS data are not comparable among different carriers:

ORA attempts to compare Pacific's ARMIS data with that reported by other carriers to show that Pacific's repair intervals are generally longer than those of any other carrier. Pacific points out that its data are not comparable to the other data for other companies because the processes used by the companies to issue trouble reports differ, which affects the out-of-service intervals. We concur with Pacific that it is not possible to make meaningful comparisons between Pacific and other carriers using ARMIS data. (D.01-12-021, mimeo at 17, fn. 17).

We are mindful that methodological differences among carriers renders the reference group comparison a potentially flawed vehicle for making relative judgments about the service quality of different carriers based on ARMIS data. At the same time, the record lacks any other data that enables us to place the ARMIS results for Pacific and Verizon in context. Therefore, we will include Pacific's reference group comparison in our analysis in this decision. However, we will do so recognizing that these comparisons must be considered in the context of other available service quality data. We will therefore afford the reference group comparison limited weight on its own, and instead place more weight on an analysis of the trend of performance of Pacific and Verizon over time, as we discuss below.

D. Summary Table of ARMIS 43-05 Measures

For the measures reported in ARMIS 43-05, we examined each carrier's performance over the years in order to assess whether the companies showed a trend of either improving or declining service for the period for which we have data for each measure. In addition, to provide some context for the ARMIS results, we compared the carriers' performance with each other and with the performance of the reference group.⁶⁸ As noted above, we placed less weight on the comparative analysis because of the differences in data methodologies among different carriers. The major results of our statistical analysis are reported in the tables that follow.⁶⁹ Although we present the analysis at this point as a reference matter, we will not discuss the results in this section. Subsequently, we describe each measure and we graph each carrier's performance in each of these measures.⁷⁰ In these subsequent sections, we will comment on each utility's performance and indicate whether any improving or deteriorating trend is observed and discuss the results of our statistical analysis at that point. The reader unfamiliar with statistical analysis may jump over these tables to our subsequent discussion.

1. The Number of Initial Trouble Reports per 100 Lines. Pacific: Residential - No Trend, Business - Improving Trend; Verizon: Residential and Business - Improving Trend

The first ARMIS measure we examine is the number of initial trouble reports for a utility normalized on the number of access lines in the utility. These reports are related to problems that have not been reported within the thirty-day period. The normalization based on the number of access lines allows comparison among carriers and over time.

For residential lines, a visual inspection of the graph below shows that Pacific's performance exceeds that of the reference group and suggests that it is improving over time. However, the statistical analysis indicates that Pacific's performance on this measure of residential service does not demonstrate a statistically significant upward or downward trend.⁷¹ Pacific's average residential performance, however, is significantly better than the average of the reference group.⁷²

For business lines, we observe a statistically significant downward trend, which is an indicator of improving performance.⁷³ Pacific's average business performance is significantly better than the average of the reference group.⁷⁴

Turning now to Verizon, for both residential and business lines, Verizon has demonstrated an improving trend and its average performance is significantly better than the average of the reference group.⁷⁵ The average performance of Verizon is also better than Pacific for residential lines, but for business lines, the difference between the average performances is not statistically significant.⁷⁶

2. The Number of Repeat Trouble Reports per 100 Lines. Pacific: Residence - No Trend, Business - Improving Trend; Verizon: Residence and Business - Improving Trend

The number of repeat trouble reports per 100 lines are the reports concerning service quality that are received within thirty days after the resolution of an initial trouble report on the same line. This is a measure of the extent to which a utility has successfully resolved a trouble report on the first try.

A visual inspection of the graph below suggests that Pacific's number of repeat trouble reports per 100 residential lines has not varied much over the years under review. Statistical analysis confirms our visual impression, and does not demonstrate a statistically significant upward or downward trend for residential lines.⁷⁷

A visual inspection of the next graph shows that, for business lines, Pacific's number of repeat trouble reports has improved. Statistical analysis documents this downward trend and finds it statistically significant.⁷⁸ This leads us to conclude that Pacific's performance has demonstrated improvement.

Finally, we observe that on both residential and business service, Pacific's repeat trouble reports appear to fall below the reference group. Our statistical analysis indicates that difference between Pacific and the reference group's average performances is statistically significant.⁷⁹ This leads us to conclude that on this measure, Pacific's performance is better than the reference group.

Turning now to Verizon, a visual inspection shows that Verizon's residential repeat trouble reports fall far below the reference group and show a consistent pattern of improvement. For business repeat trouble reports, our visual inspection shows that with exception of 1996, Verizon shows a record of service better than that offered in the reference group. Statistical analysis confirms our visual impression. Verizon has an improving trend for business and residential lines and its average performance is significantly different than the reference group.⁸⁰ Verizon's average performance is significantly different (and better) than Pacific for only residential lines.⁸¹

3. The Number of Initial Out-of-Service Trouble Reports per 100 Lines. Pacific: Residence and Business - No Trend; Verizon: Residence - No Trend, Business - Improving Trend

The initial out-of-service trouble reports refer to the troubles that cause the customer to be totally without telephone service. A visual inspection of the graphs below shows that Pacific's residential performance declined sharply after 1994, then improved after 1997. Its business performance does not exhibit an upward or downward trend, and both appear better than the reference group. Pacific's performance does not exhibit a statistically significant upward or downward trend.⁸² Pacific's average performance has been significantly better than the average of the reference group.⁸³

A visual inspection of the graphs above indicates that Verizon's performance is far below the reference group, and better than Pacific's for both residential and business lines. Moreover, a visual inspection suggests that for business lines, Verizon shows a record of improvement over time. A statistical analysis confirms our visual conclusions. Verizon's performance exhibits improving performance for its business lines.⁸⁴ Our analysis finds no statistically significant upward or downward trend in Verizon's performance for residential lines.⁸⁵ Verizon's
average performance has been better than the average of the reference group.⁸⁶ It also outperformed Pacific for residential lines.⁸⁷

4. The Number of Repeat Out-of-Service Trouble Reports per 100 Lines. Pacific: Residence - No Trend, Business - Improving Trend; Verizon - Residence and Business - No Trend

A visual inspection of the graphs below shows that Pacific's performance for residential lines does not exhibit a downward or upward trend, while its performance for business lines shows a slightly downward trend. Pacific's performance in both categories appears better than that of the reference group. Our statistical analysis confirms both these impressions. Pacific's performance does not demonstrate a statistically significant upward or downward trend for residential lines, but its performance exhibits improvement in business lines.⁸⁸ Pacific's average performance is significantly better than the average of the reference group.⁸⁹

A visual inspection indicates that Verizon's performance is far better than the reference group for the residential customers and it is better than the reference group for the business customers except in 1996. Verizon's performance does not exhibit any upward or downward trend in this area.⁹⁰ Verizon's average performance is statistically different than the reference group for both residential and the business lines.⁹¹ Verizon's average performance was also better than Pacific for residential lines but not for the business lines.⁹²

In all years except one, both Pacific and Verizon fared better than the reference group. Verizon performed better than Pacific in all years except 1994 and 1996 for business lines.

5. The Number of Subsequent Initial Trouble Reports and Subsequent Repeat Trouble Reports: Insufficient Observations

Pacific reported only four observations for each of these measures and stated that the trends were not statistically significant, except for the number of subsequent trouble reports per 100 lines, i.e., Pacific's performance has improved.⁹³ Verizon had also only four observations; therefore we did not check for the statistical significance of the trend.

6. The Number of Initial All Other Trouble Reports per 100 Lines. Pacific: Residential - Declining Trend, Business - Improving Trend; Verizon: Residence - No Trend, Business - Improving Trend

These reports refer to the complaints concerning static, interrupted calls, and etc. For residential lines, a visual inspection of the graphs below shows that Pacific's performance is deteriorating while for business lines it is improving. Pacific has been performing better than the reference group for business lines, but for residential lines it performed worse than the reference group in 1999 and 2000. Our statistical analysis confirms these results and shows that Pacific's performance exhibits an upward (declining service) trend in the number of initial all other trouble reports for residential lines and a downward (improving) trend for business lines.⁹⁴ Pacific's average performance, however, is significantly better than that of the reference group.⁹⁵

Our visual inspection indicates that Verizon has performed better than the reference group for residential lines but its performance was worse than the reference group for business lines. Verizon's performance for the residential lines did not exhibit any upward or downward trend, but its performance for business lines shows improvement.⁹⁶ Its performance is significantly better than the reference group for the residential lines, but we did not observe any significant difference for the business lines.⁹⁷ Verizon's average performance is not significantly different than Pacific for residential lines, but for business lines we observe a significant difference, i.e., Pacific's performance is better than Verizon's.⁹⁸

7. The Number of Repeat All Other Trouble Reports per 100 Lines. Pacific: Residential - Declining Trend, Business - Improving Trend; Verizon: Residential - No Trend, Business- Improving Trend

We observe that Pacific's performance is deteriorating for residential lines and improving for business lines. The statistical analysis confirms that Pacific's performance exhibits an upward (declining service) trend in the number of repeat all other trouble reports for residential lines and a downward (improving) trend for business lines.⁹⁹ Pacific's average performance is significantly better than the average of the reference group for both residential and business measures.¹⁰⁰

Verizon's performance did not exhibit any upward or downward trend for residential lines, but showed improvement for business lines.¹⁰¹ Verizon's average performance is significantly better than the reference group for residential lines, but not for the business lines.¹⁰² Verizon's average performance is better than Pacific for residential line but not for the business lines.¹⁰³

8. Initial out of service repair interval (in hours). Pacific: Residential - Sharp Declining Trend followed by Improving Trend, Business - No Trend; Verizon: Residential and Business - No Trend

On the initial out of service repair interval, Pacific's record is far different than the one developed on other measures, and it has been an area of recent Commission investigations.

In D.01-12-021, the Commission noted that Pacific's "average initial repair interval for residential customers increased 45 percent between 1996 and 2000" (with its residential repeat trouble reports per 100 lines peaking in 1998¹⁰⁴) and that in "every year since 1996, Pacific's mean time to restore service to residential customers [was] higher than the 1996 base year."¹⁰⁵ The Commission found "a sharp decline in service quality of nearly 50% over a mere four years coupled with Pacific's knowledge thereof and its lack of an attempt to remedy the deterioration."¹⁰⁶ We concluded that, "The Commission cannot find that SBC Pacific's service quality is excellent when the initial out-of-service repair intervals for residential customers has (sic) increased 45% since 1996."¹⁰⁷

Pacific's results improved beginning in 2001,¹⁰⁸ with the exception of November 2002.¹⁰⁹ Furthermore, in D.01-12-021, the Commission instituted a system of automatic penalties if Pacific's repair times failed to meet standards established by that decision. Pacific's record on this matter appears to illustrate the basic business school platitude that one gets what one measures. Indeed, we have so opined in other contexts: "Pacific Bell has exhibited a pattern of regulatory compliance during periods of special oversight, only to be followed by noncompliance in furtherance of Pacific Bell's revenue goals when the special oversight ends."¹¹⁰ We conclude that our vigilance and enforcement can help ensure good service quality.

Our visual inspection indicates that there are considerable fluctuations in Pacific's residential initial out of service interval. In 1998, the interval reached a level more than double the level in 1994 and did not decline to 1996 levels until 2001 (but still did not return to the 1994 level). In D.01-12-021, the Commission found that Pacific had violated D.97-03-067 by allowing its residential out of service intervals (both initial and repeat) to deteriorate significantly since 1996. In that decision, the Commission also noted that this is a "particularly significant element of service quality." (D.01-12-021, mimeo at 49, Finding of Fact 17). There is no observable trend change in the business initial out-of-service repair interval.

Over the entirety of the period for which we have data, the statistical analysis does not indicate any significant upward or downward trend in Pacific's performance in initial out-of-service repair intervals for business and residential customer groups.¹¹¹ Pacific's average performance is significantly worse than the reference group for residential lines, but the difference is not significant for the business lines.¹¹²

Our visual inspection indicates deterioration in Verizon's performance for residential lines, but its performance did not exhibit a statistically significant upward or downward trend.¹¹³ Verizon's average performance was significantly better than the reference group for residential and the business lines.¹¹⁴ Furthermore, Verizon's average performance is significantly better than Pacific.¹¹⁵ Since Verizon's performance is better than Pacific's and better than the reference group, we have no reason to conclude that NRF regulation caused either changes in or the level of Pacific's initial out of service interval. On the other hand, NRF regulation did not prevent a significant deterioration in Pacific's repair intervals during much of the period for which we have data. Repeat out-of-service repair interval (in hours).

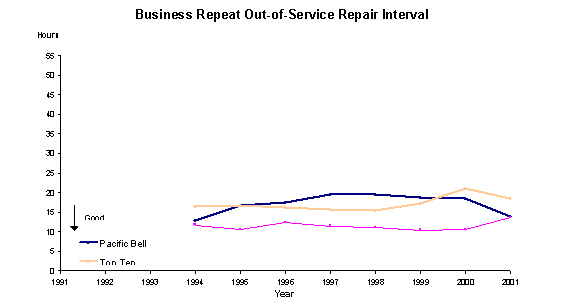

9. Pacific: Residential - Sharp Declining Trend followed by Improving Trend, Business - No Trend Verizon: Residential and Business - No Trend

Our visual inspection of the charts below indicates performance by Pacific similar to that for initial out of service repair intervals. The out-of-service interval doubled from 1994 to 1998 and subsequent reductions in the interval still have not brought the outage intervals down to 1994 levels. Over the entirety of the period for which we have data, we have not observed any significant upward or downward trend in Pacific's performance in repeat out-of-service repair intervals for business and residential customer groups.¹¹⁶ Pacific's average performance is significantly worse than the reference group for residential lines but better for the business lines; however, the difference is not statistically significant for business lines.¹¹⁷ The major increases in the outage intervals from 1994 to 1998 for both the residential initial out of service interval and residential repeat out of service interval, coupled with results for both measures that statistically exceed that of the reference group indicates that Pacific has a problem with its repair operation.

Verizon also did not exhibit any statistically significant upward or downward trend for residential and business lines.¹¹⁸ For both the residential and business lines, Verizon's performance was significantly better than the reference group.¹¹⁹ Verizon's average performance was significantly better than Pacific for residential and business lines.¹²⁰

10. Initial all other repair interval (in hours). Pacific: Residential - Sharp Declining Trend followed by Improving Trend, Business - Improving Trend; Verizon: Residential - Declining Trend; Business - No Trend

"Initial all other repair interval" is a grab-bag measure that captures repair intervals not covered in the prior categories.

On this measure, Pacific's performance looks similar to its performance on the previous repair interval measures. Repair intervals trend upward and double between 1994 and 1997 and then trend downward from 1998 to 2001. As a visual review of the graph below illustrates, Pacific has performed worse than the reference group except in 2001. Pacific's performance for business lines appears more stable and exhibits an improving trend. Statistical analysis shows that Pacific does not exhibit an upward or downward trend for residential lines and some improvement is observed for business lines.¹²¹ Pacific's average performance for residential initial all other repair interval was statistically worse than the reference group. However, for business service, Pacific's performance was not statistically different than the reference group.¹²²

Visual inspection shows that Verizon outperformed the reference group for each measure. Verizon's performance, however, appears to have slightly deteriorated for the residential lines, but did not exhibit any significant upward or downward trend for the business lines.¹²³ Statistical analysis shows that Verizon's performance is significantly better than the reference group.¹²⁴ Verizon's performance is also significantly better than Pacific's.¹²⁵

11. Repeat all other repair interval (in hours). Pacific: Residential - Sharp Declining Trend followed by Improving Trend, Business - No Trend; Verizon: Residential - Declining Trend, Business - No Trend

As with the other repair interval measures, visual inspection of the graphs below indicates that Pacific's residential repeat all other repair interval almost doubled between 1994 and 1998 and then trended downward from 1998 to 2001. The statistical analysis indicates that Pacific's performance did not demonstrate any upward or downward trend for business and residential lines.¹²⁶ Pacific's average performance is significantly worse than the reference group for the residential lines but the difference is not significant for business lines.¹²⁷

Pacific showed a high level of repeat problems shortly after making an initial repair. In 2000, at least 2.73% of residential repeat out-of-service repairs occurred within 24 hours of a previous repair; the number in 2001 was 2.38%. In 2001, the number of repeat problems within one week of a previous repair was 6.76%, 8.84% within two weeks, and 10.10% within three weeks.¹²⁸ It may be that these figures represented different problems for the same customers. Whatever the problem is, however, these high numbers certainly affected customers. The disruption caused by a repair is probably one of the more serious events that can occur in a carrier's relationship with its customers. A second repair within such a short time is an even more serious disruption.

Verizon performance exhibits an upward (declining service) trend for the residential customers, but not for the business lines.¹²⁹ Verizon's average performance is significantly better than the reference group.¹³⁰ It is also significantly better than Pacific.¹³¹

12. Average Installation Interval. Pacific: Residence and Business - No Trend; Verizon: Residence and Business - Large Deterioration in Service Followed by Even Larger Improvement

With regard to ARMIS data, Pacific claimed that, "both residential and business installation intervals in 2001 are below the level they were in 1994, the first year the data were reported."¹³²

According to the data in the following graphs, Pacific's ARMIS performance on installation intervals (residential and business) was generally consistent over the 1994-2001 period. Pacific's data were slightly worse than Verizon's in 2000-01. As the graphs reveal, Pacific's installation intervals were generally better than Verizon's during the NRF period, with business installation intervals remaining stable in the 3-4 day range during the entire period 1994-2001. Residence intervals were not as steady, with small spikes in 1995 and 1997, but the overall numbers were generally lower than Verizon's except in 1994-95 and 2000-01. Concerning the reference group, it is difficult to draw any conclusions based on visual inspection. In some years, Pacific's performance exceeded that of the reference group, and in some years it did not.

The statistical analysis indicates that Pacific's performance does not exhibit an upward or downward trend.¹³³ The average performance was not significantly different than the reference group.¹³⁴

With respect to Pacific's installation data, ORA asserted that, "[Pacific's] ARMIS installation orders also include orders for vertical services such as Caller ID and call waiting, as well as jack installations, etc. . . [and the] . . . increase in total installation orders reflects both the increased demand for access lines, and demand for new vertical services marketed in California during the mid to late 1990s."¹³⁵ ORA alleged that in 1999, for example, Pacific had approximately 10 million more orders for vertical services and other local services only than it did for orders for basic service, and that vertical services orders contributed to the low reported average installation intervals because vertical services orders are completed within a day of placing the order resulting in installation intervals of 0 or 1 day. Pacific includes vertical services orders in its data, as the ARMIS measure clearly requires. Moreover, Pacific can install these services quickly and in automated fashion without dispatching a service technician. Thus, as the percentage of vertical services orders increases, the average installation interval will automatically fall. We have, however, no reason to believe that this trend for Pacific differs from the trends observed in our reference group, and Pacific's performance. While Pacific asserts that "in most cases, Pacific's recent performance has improved relative to most of the years in which data were reported,"¹³⁶ it did not show that the improvements in installation intervals were the result of actual improvement in performance instead of the result of an increasing proportion of "short interval" vertical services orders in the mix of installation interval data reported under ARMIS. Although this development makes the interpretation of this measure difficult, there is no easy remedy. A vertical service is indeed a service, should be measured, and has been part of this measure for a long time.

Turning now to Verizon, we note that it too includes vertical services in this measure, as do the reference utilities. With regard to installation intervals, the graph shows that Verizon performed less well than did Pacific for both residence and business installations from 1995-99. In 2000-01, Verizon's performance improved: average installation intervals for residence customers decreased from nearly 5 days in 1998 to under 1 day in 2000 and 2001, while the same interval for business customers went from nearly 7 days in 1998 to just over two days in 2000 and 2001. Nonetheless, Verizon's installation intervals (business) were at 4 days or more from 1995 through 1999.

The graph of Verizon's installation intervals exhibits significant volatility. For both residential and business customers, Verizon's installation intervals significantly deteriorated for several years, followed by even larger improvement. The statistical analysis shows that Verizon did not exhibit any statistically significant trend for residential and business lines.¹³⁷ Its average performance is not significantly different than the reference group.¹³⁸ Its average performance is not significantly different than Pacific, either.¹³⁹ Thus, the great changes in Verizon's installation intervals over this period make it impossible to reach a conclusion on exactly what is happening with Verizon concerning installation intervals.

13. Switch Downtime. Pacific - No Trend, But Consistently Short Downtime; Verizon: Deteriorating Trend

Switch downtime occurs when call processing capability for an end office is lost. This measure reports the switch downtime in minutes per switch experiencing downtime. As is shown in the chart below, Pacific has significantly improved its performance in the first few years of the NRF period. The statistical analysis shows that Pacific does not exhibit any statistically significant trend in downtime per switch down and performs better than the average of the reference group.¹⁴⁰

Verizon's downtime per switch exhibited an upward (deteriorating) trend.¹⁴¹ Its average performance is significantly worse than Pacific.¹⁴² Verizon's average performance is also worse than the reference group, but the difference is not statistically significant.¹⁴³

14. Switches Down per Switch

Pacific had only six observations for this measure. The statistical analysis shows that Pacific does not exhibit a statistically significant trend in the number of switches down per switch while Verizon exhibits a slight improvement in this area.¹⁴⁴

15. Number of Switch "Occurrences"

Pacific reported three measures under this category: the number of occurrences over two minutes per switch (the number of incidents of switch downtime over two minutes in duration), the number of occurrences under two minutes per switch (the number of incidents of switch downtime under two minutes in duration) and the percent of occurrences unscheduled (the percent of incidents of switch downtime under two minutes in duration that are not scheduled for routine maintenance or network upgrades). Pacific's performance does not show a statistically significant upward or downward trend in the number of occurrences over two minutes per switch and the percent unscheduled.¹⁴⁵ Pacific exhibited a downward (improving) trend for the number of occurrences under two minutes per switch.¹⁴⁶

Verizon had more data points for these measures. Verizon has exhibited a downward (improving) trend for the number of occurrences under two minutes per switch and an upward (deteriorating) trend for the percent unscheduled.¹⁴⁷

16. Installation Commitments Met. Pacific: Residential - No Trend, Business - Deteriorating Trend; Verizon: Residential and Business - No Trend

Pacific's residential installation "commitments met" data were generally consistent from 1991-2001, with the exception of a dip in "commitments met" in late 1997. For business customers, the percentage of commitments met declined notably from 1991 through 1997, improving again in 2001. Pacific has demonstrated a slight downward trend for its residential lines but it is not statistically significant while it has shown a slight deterioration for business lines.¹⁴⁸ Its performance is not statistically different than the reference group for the residential lines but it is better for the business lines.¹⁴⁹

Other than in 1999, when Verizon's percentage of residential commitments met dipped to below 97%, Verizon performed consistently during the 1991-2001 period on its residential commitments

Verizon's results were less stable in the area of business commitments met, as the foregoing graph reveals. Verizon's results showed a general declining trend between 1991 and 1998 and were most problematic in 1995 and 1998, dipping to 96% and 95.5% of commitments met for business customers in those years. For all years except 1999, the data show that Verizon's performance was worse than Pacific's.

The statistical analysis indicates that Verizon did not exhibit any statistically significant upward or downward trend for the residential and business lines.¹⁵⁰ Its performance is not significantly different than the reference group.¹⁵¹ Verizon's performance is also not statistically different than Pacific's for residential lines but it is worse than Pacific for business lines.¹⁵²

E. Summary of Empirical Assessment of Pacific's and Verizon's Performance on ARMIS 43-05 Measures

In assessing the results of the ARMIS 43-05 measures, as noted previously, our primary focus is on the performance trends shown over time. However, in the absence of any FCC service standards, we have compared the performance of Pacific and Verizon against a reference group of large utilities. In light of this Commission's finding that out of service repair intervals are a particularly significant element of service quality and in view of the indisputable fact that telephone service is of no value when it is not working, we place emphasis on this measure.

Compared to the reference group, as summarized in the chart below, Pacific's record on the six measures of trouble reports has been better than that of the reference group. Pacific also performed better than the reference group in switch downtime and installation commitments met (business). We have not observed a statistically significant difference between Pacific and the reference group on initial out-of-service repair interval (business), repeat out-of-service repair interval (business), initial all other repair interval (business), repeat all other repair interval (business), average installation interval (residential and business), installation commitments met (residential). Pacific's performance lagged behind the reference group on all four residential repair interval measures: initial out of service repair interval (residential), repeat out-of-service repair interval (residential), initial all other repair interval (residential), and repeat all other repair interval (residential).

Pacific vs Reference Group

ARMIS Data

Worse

Better

Inconclusive

Residential

Repair Interval

Trouble Reports

Installation Interval

-Initial Out of Service

-Initial

Installation Commit. Met

-Repeat Out of Service

-Repeat

-Initial All Other

-Initial Out of Service

-Repeat All Other

-Repeat Out of Service

-Initial All Other

-Repeat All Other

Subtotal

4

6

2

Business

Trouble Reports

Repair Interval

-Initial

-Initial Out of Service

-Repeat

-Repeat Out of Service

-Initial Out of Service

-Initial All Other

-Repeat Out of Service

-Repeat All Other

-Initial All Other

-Repeat All Other

Installation Interval

Installation Commit. Met

Subtotal

0

7

5

Bus/Res

Downtime per Switch

Subtotal

0

1

0

Total

4

14

7

For Pacific, we statistically examined trends in performance during the NRF years, as summarized in the chart below. In particular, we find that during the NRF period Pacific's performance showed statistically significant improvement mostly on measures for business customers: initial trouble reports per 100 lines (business), repeat trouble reports per 100 lines (business), repeat out-of-service reports (business), initial all other trouble reports (business), repeat all other trouble reports (business), initial all other repair interval (business), and the number of occurrences under two minutes. Pacific has shown no statistically significant change in initial trouble reports (residential), repeat trouble reports (residential), initial out-of-service reports (residential and business), repeat out-of-service reports (residential), initial out-of-service repair interval (residential and business), repeat out-of-service repair interval (residential and business), initial all other repair interval (residential), repeat all other repair interval (residential and business), average installation interval (residential and business), switch downtime, installation commitments met (residential), the number of switches down, the number of occurrences over two minutes, and the percent of unscheduled occurrences. Pacific's performance has shown a worsening trend in initial all other trouble reports (residential), repeat all other trouble reports (residential) and installation commitments met (business).

Pacific Performance Trends

ARMIS Data

Worse

Better

Inconclusive

Residential

Trouble Reports

Installation Interval

-Initial All Other

Installation Commit. Met

-Repeat All Other

Trouble Reports

-Initial

-Repeat

-Initial Out of Service

-Repeat Out of Service

Repair Interval

-Initial Out of Service

-Repeat Out of Service

-Initial All Other

-Repeat All Other

Subtotal

2

0

10

Business

Installation Commit. Met

Trouble Reports

Installation Interval

-Initial

-Repeat

Trouble Reports

-Repeat Out of Service

-Initial Out of Service

-Initial All Other

-Repeat All Other

Repair Interval

-Initial Out of Service

Repair Interval

-Repeat Out of Service

-Initial All Other

-Repeat All Other

Subtotal

1

6

5

Bus/Res

Under 2 min per switch

Downtime per Switch

Switches Down

Over 2 min per switch

% Unscheduled

Subtotal

0

1

4

Total

3

7

19

Our limited statistical analysis, does not highlight a significant issue. We note that Pacific had significant problems with both initial and repeat residential out of service repair intervals during much of the period for which we have data. For both measures, repair intervals doubled from 1994 to 1998, a notable deterioration on an important measure. The repair intervals fell most significantly in 2001, after ORA filed its (ultimately successful) complaint alleging that Pacific's performance on these measures violated a previous Commission order. Because both of measures show a significant deterioration from 1994 through 1998 followed by improvement back toward 1994 levels in the 1999 through 2001 periods, our statistical analysis does not show a statistically significant trend over the entirety of the period under review. Nevertheless, we consider the decline in quality from 1994 to 1998 to have been a significant problem. Fortunately, the data show that Pacific is now headed in the right direction on this measure. Pacific did not have these same problems with business out of service intervals (both initial and repeat), for which Pacific's performance was relatively stable and not statistically different from the reference group. We now turn to Verizon. With respect to the important measures of out of service intervals, for both residential and business customers, the data show that Verizon did not experience the same problems as Pacific. Verizon provided relatively stable performance that was significantly better than the reference group and Pacific.

Compared with the reference group, Verizon's record has been better in almost all measures, as summarized in the chart below. However, for initial all other trouble reports (business), repeat all other trouble reports (business), average installation intervals (residential and business), switch downtime, and installation commitments met (residential and business), we have not observed any statistically significant difference between Verizon's performance and that of the reference group. Verizon's performance did not lag behind the reference group in any of the measures.

Verizon vs Reference Group

ARMIS Data

Worse

Better

Inconclusive

Residential

Trouble Reports

Installation Interval

-Initial

Installation Commit. Met

-Repeat

-Initial Out of Service

-Repeat Out of Service

-Initial All Other

-Repeat All Other

Repair Interval

-Initial Out of Service

-Repeat Out of Service

-Initial All Other

-Repeat All Other

Subtotal

0

10

2

Business

Trouble Reports

Trouble Reports

-Initial

-Initial All Other

-Repeat

-Repeat All Other

-Initial Out of Service

-Repeat Out of Service

Installation Interval

Installation Commit. Met

Repair Interval

-Initial Out of Service

-Repeat Out of Service

-Initial All Other

Subtotal

0

8

4

Bus/Res

Downtime per Switch

Subtotal

0

0

1

Total

0

18

7

Our examination of how Verizon's service quality changed over time is summarized in the chart below. We find that during the NRF period, Verizon's performance showed statistically significant improvement on the number of initial trouble reports (residential and business), the number of repeat trouble reports (residential and business), the number of initial out-of-service trouble reports (business), the number of initial all other trouble reports (business), the number of repeat all other trouble reports (business), the number of switches down, and the number of occurrences under two minutes. Verizon's performance has not shown any statistically significant change in the initial out of service trouble reports (residential), repeat out-of-service trouble reports (residential and business), initial all other trouble reports (residential), repeat all other trouble reports (residential), initial out-of-service repair interval (residential and business), repeat out-of-service repair interval (residential and business), initial all other repair interval (business), repeat all other repair interval (business), average installation interval (residential and business), and installation commitments met (residential and business). Verizon's performance has shown a worsening only in initial all other repair interval (residential), repeat all other repair interval (residential), switch downtime, and the percent of unscheduled occurrences.

Verizon PerformanceTrends

ARMIS Data

Worse

Better

Inconclusive

Residential

Repair Interval

Trouble Reports

Installation Interval

-Initial All Other

-Initial

Installation Commit. Met

-Repeat All Other

-Repeat

Trouble Reports

-Initial Out of Service

-Repeat Out of Service

-Initial All Other

-Repeat All Other

Repair Interval

-Initial Out of Service

-Repeat Out of Service

Subtotal

2

2

8

Business

Trouble Reports

Installation Interval

-Initial

Installation Commit. Met

-Repeat

-Repeat Out of Service

Trouble Reports

-Initial All Other

-Repeat Out of Service

-Repeat All Other

Repair Interval

-Initial Out of Service

-Repeat Out of Service

-Initial All Other

-Repeat All Other

Subtotal

0

5

7

Bus/Res

Downtime per Switch

Under 2 min per switch

% Unscheduled

Switches Down

Subtotal

2

2

0

Total

4

9

15

We find that the trends in Verizon's and Pacific's service quality ARMIS measures differ between business and residential customers. For both carriers, there are more areas of improvement for business customers than there are for residential customers, and there are more areas of deteriorating service for residential customers than business. The trend analysis for Pacific shows that only service for business customers has improved; there are no improvements for residential customers and two areas of decline. For Verizon, the trend analysis indicates that it has improved service for more business measures than residential, and the only areas of decline were two residential measures. In addition, Verizon has a combined Business/Residential measure that worsened.

Regarding the comparison of each utility to the reference group, in no instance was Verizon's performance worse than the reference group, whereas Pacific' s performance was worse than the reference group for 4 residential measures. Additionally, in comparison to the reference group, Verizon was better than Pacific in that it outperformed the reference group in 18 measures whereas, Pacific outperformed in 14 measures. When comparing Verizon specifically to Pacific, Verizon outperformed Pacific in 13 of the measures whereas Pacific outperformed Verizon in 3 of the measures.

In total, while the data show an improvement in service quality in many areas, particularly for business customers, we remain concerned regarding the areas showing a decline in service quality, particularly for residential customers. The totality of the ARMIS data for the two companies does not permit us to establish whether NRF caused a positive or negative change in service quality. While it is impossible to show NRF caused either the improvements or the declines, NRF is the regulatory structure under which any solution to a decline in service quality must be addressed.

F. MCOT Data

Both Pacific and Verizon have undergone changes as a result of large mergers they have entered into with other carriers. As a consequence of these mergers, the FCC has required specific reporting for time-limited periods so that it may monitor service quality impacts that may result from the mergers. (Throughout this proceeding, the parties have referred to these reports generically as "MCOT" requirements, and we use that nomenclature here.)¹⁵³

1. MCOT Data - Pacific Shows No Service Diminishment Following Amertech Merger

As a condition of SBC's merger with Ameritech, the FCC required additional quarterly, state-by-state service quality reporting for the period from June 1999 to November 2002.¹⁵⁴ Categories of reporting for retail services include installation and maintenance, switch outages, transmission facility outages, service quality-related complaints, and answer time performance. The FCC based the reporting categories on the NARUC¹⁵⁵ Service Quality White Paper, authored in 1998.¹⁵⁶

In late 2000, the FCC notified SBC that, "[t]he quarterly service quality reports filed by SBC Communications, Inc. (`SBC') pursuant to the SBC/Ameritech Merger Order indicate that the quality of service provided by SBC's incumbent local exchange carriers (`LECs') has been deteriorating in several states since approval of the merger in October 1999." The FCC representative went on to state that, "I am concerned that SBC's performance data indicates that consumers in SBC's region are experiencing increasing installation delays, longer repair times, and greater difficulties contacting SBC's incumbent LECs about service quality and other issues. I note also that consumer complaints regarding service quality have increased in recent months in spite of SBC's explicit commitment when the merger was pending to devote greater resources to service quality after the merger closed."¹⁵⁷

This comment offers an over-all assessment of SBC. We now turn to see how Pacific's service quality fared following the merger.

The FCC produced charts for certain measures for the period July 1999 to June 2001. According to these charts Pacific's performance shows negative spikes in California in the following areas: 1) answer time performance (business customers),¹⁵⁸ 2) trouble report rate per 100 lines (especially business customers),¹⁵⁹ 3) percentage of installation orders completed within 5 working days (especially residential customers),¹⁶⁰ and 4) percentage of installation orders delayed over 30 days (business customers).¹⁶¹

These spikes, however, proved only transitory when subjected to statistical scrutiny. The data for these measures are also posted on the website for the period January 2000 through September 2001.¹⁶² In order to check whether there is a statistically significant upward or downward trend, we estimated a regression of Pacific's performance on a linear time trend. Our statistical analysis showed that Pacific's performance exhibits an improving trend in average answer time for residential and business customers.¹⁶³ Pacific's performance in average trouble duration is also improving for residential and business lines.¹⁶⁴ Pacific is also improving its performance in trouble report rate per 100 lines.¹⁶⁵ Pacific's performance does not show any change in installation completed within five business days for residential lines.¹⁶⁶ For business lines, our statistical analysis shows a slight improvement. ¹⁶⁷

In summary, although the FCC has identified a trend of service deterioration in SBC affiliates following the Ameritech merger, Pacific's operations appear largely unaffected by the Ameritech merger. The few spikes in poor service proved transitory. Moreover, since the period for which we have MCOT data is so short and covers only part of the period subject to our investigation, it does not permit us to draw any conclusion concerning how NRF regulation affected Pacific's performance.

Recognizing the value of the MCOT reporting, during the hearings, Administrative Law Judge (ALJ) Sarah R. Thomas granted TURN's motion seeking an order requiring Pacific to continue to report certain data to this Commission for measures required under the FCC's MCOT requirements that expired in November 2002. (Verizon agreed with TURN voluntarily to continue the reporting until after a final decision in this proceeding.)

Judge Thomas ruled that Pacific should continue to report such information.¹⁶⁸ She found that Pacific already has a mechanism in place to capture this data easily, that it has no plans to transfer or dismiss the employees who currently prepare the report, and that it would be wasteful to lose the important data the report captures at a time when the Commission is closely examining Pacific's service quality. We hereby ratify that ruling of the judge pursuant to Pub. Util. Code § 310. We require Pacific to continue reporting these results until further notice of the Commission.

2. MCOT Data - Verizon California (GTE) Shows No Diminishment of Service Quality Following Merger

The FCC also imposed a 36-month reporting requirement as a condition of the 2000 GTE merger with Bell Atlantic that created Verizon.¹⁶⁹ As TURN pointed out in a motion filed during Phase 2B, the FCC requirement provides the Commission with information not otherwise available in GO 133-B. For example, while GO 133-B measures the handling of business office calls, it does not track billing calls even though such calls account for half of the calls to the business office.

According to the FCC data,¹⁷⁰ Verizon showed negative spikes in California on several service quality measures at the following times during the period July 2000-June 2001, as compared to the rest of that period: 1) percentage of dissatisfied customers (with business customers reporting 50% dissatisfaction in November 2000 and residential customers reporting 20% dissatisfaction in March 2001),¹⁷¹ 2) answer times (with business answer times in the 50-60 second range in September 2000 and in the 40-50 second range in January 2001 - as compared to a GO 133-B standard of 20 seconds); and residential times exceeding 20 seconds in November 2000 [30 seconds] and January 2001 [40 seconds],¹⁷² 3) repair intervals for both residential and business customers spiking in the period January-March 2001,¹⁷³ 4) repeat trouble reports spiking for both types of customers in March 2001,¹⁷⁴ and 5) trouble reports per hundred lines spiking in the January-March 2001 time period for residential customers.¹⁷⁵ However, we have not observed a statistically significant upward or downward trend in Verizon's performance for the following measures: complaints per one million lines (residential and business),¹⁷⁶ the percentage of dissatisfied customers (residential and business),¹⁷⁷ answer times (business),¹⁷⁸ average repair interval (residential and business),¹⁷⁹ the percentage of repeat trouble reports (residential and business),¹⁸⁰ trouble report rates (residential and business),¹⁸¹ the percentage of orders completed within five working days (residential and business),¹⁸² the percentage of orders delayed over 30 days (business).¹⁸³ Verizon's performance shows a slight improvement in the percentage of orders delayed over 30 days for the residential lines¹⁸⁴ and in the answer time performance for residential lines.¹⁸⁵ As a result, we conclude that despite a visual spike illustrating a decrease in the quality of service in the January to March 2001 time period, there is no statistically significant indicator of an ongoing decrease in quality.

While Verizon voluntarily agreed to continue reporting this MCOT data, we will expand on that agreement to make it parallel with Pacific's, and require Verizon to continue to make its MCOT reports to this Commission until further notice.

⁶⁰ Exhs. 2B:707 (Verizon) and 2B:704 & 2B:706 (Pacific). ⁶¹ The ARMIS reports appear in the record as Exhibits 704 and 706. ⁶² Errata to Opening Brief of the Office of Ratepayer Advocates in Service Quality in Phase 2B, filed Sept. 10, 2002, at 1; Second Errata to Opening Brief of the Office of Ratepayer Advocates on Service Quality in Phase 2B, filed Sept. 11, 2002, at 1. ⁶³ Our rejection of ORA's recommendation does not in any way preclude the Commission staff from reviewing in the future Pacific's service quality data or its data collection and reporting methods. Similarly, in denying this recommendation, we do not intend to preclude proposals in Phase 3B designed to ensure the accuracy of data reported to regulators, through audits or any other means. ⁶⁴ Indeed, Pacific's own staff worked on testing Ms. Young's results, making clear that Pacific was well aware of the ORA's purpose for requesting the data. Exh. 2B:357 at 29 (Resnick Reply Testimony) ("At my direction, several analysts in [Pacific's] Network Services [organization] have worked with the data supplied by Ms. Young in her workpapers."). ⁶⁵ ORA Reply/Service Quality at 3. ⁶⁶ Id. at 5. ⁶⁷ Id. ⁶⁸ As noted above, the reference group is introduced in Hauser's direct testimony and consists of the top ten local exchange carriers based on the number of total access lines in 2001. These companies include Verizon-NY Telephone, Southwestern-Texas, Illinois Bell, Verizon-New Jersey, Bell South-Florida, Verizon-Pennsylvania, Michigan Bell, GTE/CA, Verizon-New England, and Bell South-GA. We note that our analysis will include GTE/CA in both the reference group and as a company subject to analysis. Although this is not the preferred mode of data analysis, since GTE/CA's performance exceeds both that of Pacific and the reference group for majority of the measures, including GTE/CA in the reference group leads to comparisons that understate the performance of both Pacific and GTE/CA in comparison to a reference group of utilities outside of California. ^{69 67} The first table, Trend in Pacific Bell ARMIS Performance, is from Exh.2B: 355/Attachment 5 (Hauser Reply Testimony). ⁷⁰ The graphs and tables are based on ARMIS data reported by carriers to the FCC. Prior to 1996, carriers reported ARMIS data on a quarterly basis, and thereafter, annually. For years reporting quarterly data, quarterly results are summed to obtain annual trouble reports. Annual repair intervals are obtained by weighting and combining the quarterly data (i.e., multiplying quarterly repair intervals by quarterly trouble reports, summing the results and dividing the summed result by annual trouble reports). Similarly, Verizon's annual trouble reports are obtained by summing GTE California (GTEC) and Contel trouble reports, and Verizon's repair intervals are obtained by weighting and combining the GTEC and Contel repair intervals. Contel data was included starting 1997 since Verizon and Contel merged their operations in April 1996. ⁷¹ The coefficient is -0.179 with t-statistic -0.69. Although this indicates a slight decrease in the number of trouble reports over time, it is not significant at 1% or 5% level (R-square: 0.05, no. of observations: 11). ⁷² For residential lines, the coefficient is -7.16 with t-statistic -4.78, significant at 1% level (R-square: 0.53, no. of observations: 22). ⁷³ The coefficient is -0.609 with t-statistic -5.52, significant at 1% level (R-square: 0.77, no. of observations: 11). ^{74 72}For business customers, the coefficient is -5.51 with t-statistic -4.84, significant at 1% level (R-square: 0.54, no. of observations: 22). ⁷⁵ For residential lines, the coefficient is -0.67 with t-statistic -2.89, significant at 5% level (R-square: 0.48, no. of observations: 11). For business lines, the coefficient is -0.6 with t-statistic -6.74, significant at 1% level (R-square: 0.83, no. of observations: 11). In comparison with the reference group, for the residential lines, the coefficient is -11.35 with t-statistic -7.10, significant at 1% level (R-square: 0.72, no. of observations: 22). For the business lines, the coefficient is -3.8, with t-statistic -3.4, significant at 1% level (R-square: 0.37, no. of observations: 22). ⁷⁶ For residential lines, the coefficient is -4.19 with t-statistic -3.34, significant at 1% level (R-square: 0.36, no. of observations: 22). For business lines, the coefficient is 1.71 with t-statistic 1.79, not significant at 1% or 5% level (R-square: 0.14, no. of observations: 22). ⁷⁷ The coefficient is 0.002 with t-statistic 0.05, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 11). ⁷⁸ The coefficient is -0.183 with a t-statistic -9.87, significant at 1% level (R-square: 0.92, no. of observations: 11). ⁷⁹ For residential lines, the coefficient is -1.68, with t statistic -8.79, significant at 1% level (R-square: 0.79, no. of observations: 22). For business lines, the coefficient is -0.85, with t-statistic -3.67, significant at 1% level (R-square: 0.40, no. of observations: 22). ⁸⁰ The coefficient for the residential lines is -0.16 with t-statistic -3.66, significant at 1% level (R-square: 0.60, no. of observations: 11). The coefficient for business lines is -0.13 with a t-statistic -2.82, significant at 5% level (R-square: 0.47, no. of observations: 11). In comparison with the reference group, for residential lines, the coefficient is -3.08 with t-statistic -11.93, significant at 1% level (R-square: 0.88, no. of observations: 22). For business lines, the coefficient is -0.88 with t-statistic -3.73, significant at 1% level (R-square: 0.41, no. of observations: 22). ⁸¹ For residential lines, the coefficient is -1.4 with t-statistic -6.01, significant at 1% level (R-square: 0.64, no. of observations: 22). For business lines, the coefficient is -0.03, with t-statistic -0.10, not significant at 1% or 5% level (R-square:0, no. of observations: 22). ⁸² For residential lines, the coefficient is -0.012 with t-statistic -0.04, not significant at 1% level or 5% level (R-square: 0.00, no. of observations: 8). Similarly, for business lines, the coefficient is -0.024, with a t-statistic of -0.29, not significant at 1% or 5% level (R-square: 0.01, no. of observations: 8). ⁸³ For residential lines, the coefficient is -3.28 with t-statistic -4.41, significant at 1% level (R-square: 0.58, no. of observations: 16). For business lines, the coefficient is -3.01 with t-statistic -7.39, significant at 1% level (R-square: 0.80, no. of observations: 16). ⁸⁴ The coefficient is -0.3 with a t-statistic -4.16, significant at 1% level (R-square: 0.74, no. of observations: 8). ⁸⁵ The coefficient is -0.01 with t-statistic -0.14, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 8). ⁸⁶ For residential lines, the coefficient is -8.77 with t-statistic -25.88, significant at 1% level (R-square: 0.98, no. of observations: 16). For business lines, the coefficient is -3.71, with t-statistic -7.84, significant at 1% level (R-square: 0.81, no. of observations: 16). ⁸⁷ For residential lines, the coefficient is -5.49 with t-statistic -7.6, significant at 1% level (R-square: 0.81, no. of observations: 16). For business lines, the coefficient is -0.7, with t-statistic -2.04, not significant at 1% or 5% level (R-square: 0.23, no. of observations: 16). ⁸⁸ The coefficient is -0.02 with t-statistic -0.41, not significant at 1% or 5% level (R-square: 0.03, no. of observations: 8). For business lines, the coefficient is -0.03 with t-statistic -3.56, significant at 5% level (R-square: 0.68, no. of observations: 8). ⁸⁹For residential lines, the coefficient is -0.97 with t-statistic -5.16, significant at 1% level (R-square: 0.66, no. of observations: 16). For business lines, the coefficient is -0.74, with t-statistic -6.92, significant at 1% level (R-square: 0.77, no. of observations: 16). ⁹⁰ The coefficient is zero with t-statistic 0.02 for residential lines, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 8). For business lines, the coefficient is -0.11 with t-statistic of -1.34, not significant at 1% or 5% level (R-square: 0.23, no. of observations: 8). ⁹¹ For residential lines, the coefficient is -2.31 with t-statistic -14.38, significant at 1% level (R-square: 0.94, no. of observations: 16). For business lines, the coefficient is -0.72 with t-statistic -3.23, significant at 1% level (R-square: 0.43, no. of observations: 16). ⁹² For residential lines, the coefficient is -1.34 with t-statistic -11.69, significant at 1% level (R-square: 0.91, no. of observations: 16). For business lines, the coefficient is 0.02 with t-statistic 0.10, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 16). ⁹³ See Footnote 4 in Trend in Pacific Bell ARMIS Performance table. ⁹⁴ For residential lines, the coefficient is 0.502 with t-statistic 3.14, significant at 5% level (R-square: 0.62, no. of observations: 8). For business lines, the coefficient is -0.231 with t-statistic -4.16, significant at 1% level (R-square: 0.74, no. of observations: 8). ⁹⁵ For residential lines, the coefficient is -2.79 with t-statistic -3.56, significant at 1% level (R-square: 0.48, no. of observations: 16). For business lines, the coefficient is -2.35 with t-statistic -4.55, significant at 1% level (R-square: 0.60, no. of observations: 16). ⁹⁶ For residential lines, the coefficient is -0.12 with t-statistic -1.45, not significant at 5% or 1% level (R-square: 0.26, no. of observations: 8). For business lines, the coefficient is -0.55 with t-statistic -8.37, significant at 1% level (R-square: 0.92, no. of observations: 8). ⁹⁷ The coefficient is -1.87 with t-statistic -3.18, significant at 1% level (R-square: 0.42, no. of observations: 16). The coefficient is 0.65 with t-statistic 0.95, not significant at 1% or 5% level (R-square: 0.06, no. of observations: 16). ⁹⁸ The coefficient is 0.91 with t-statistic 1.55, not significant at 1% or 5% level (R-square: 0.15, no. of observations: 16). The coefficient is 2.99 with t-statistic 5.43, significant at 1% level (R-square: 0.68, no. of observations: 16). ⁹⁹ For residential lines, the coefficient is 0.077 with t-statistic 3.05, significant at 5% level (R-square: 0.61, no. of observations: 8). For business lines, the coefficient is -0.098 with t-statistic 5.62, significant at 1% level (R-square: 0.84, no. of observations: 8). ¹⁰⁰ For residential lines, the coefficient is -0.86 with t-statistic -8.04, significant at 1% level (R-square: 0.82, no. of observations: 16). For business lines, the coefficient is -0.37 with t-statistic -3.11, significant at 1% level (R-square: 0.41, no. of observations: 16). ¹⁰¹ For residential lines, the coefficient is -0.02 with t-statistic -1.22, not significant at 1% or 5% level (R-square: 0.20, no. of observations: 8). For business lines, the coefficient is -0.11 with t-statistic -7.47, significant at 1% level (R-square: 0.90, no. of observations: 8). ¹⁰² For residential lines, the coefficient is -1.21 with t-statistic -17.26, significant at 1% level (R-square: 0.96, no. of observations: 16). For business lines, the coefficient is -0.21 with t-statistic -1.67, not significant at 1% or 5% level (R-square: 0.16, no. of observations: 16). ¹⁰³ For residential lines, the coefficient is -0.35 with t-statistic -3.88, significant at 1% level (R-square: 0.52, no. of observations: 16). For business lines, the coefficient is 0.16 with t-statistic 1.17, not significant at 1% or 5% level (R-square: 0.09, no. of observations: 16). ¹⁰⁴ Exh. 2B:354, Attachment 16 (Hauser Direct Testimony). ¹⁰⁵ D.01-02-021, mimeo., at 8 & n.4; see also TURN Opening/Service Quality at 19. ¹⁰⁶ D.01-02-021, mimeo., at 11. ¹⁰⁷ Id. at 48. ¹⁰⁸ TURN, however, notes that ORA filed a complaint against Pacific in November 2000. ¹⁰⁹ For November 2002, Pacific's initial out of service repair interval for residential customers of 42.49 hours exceeds by more than 13 hours the standard of 29.3 hours established in D.01-12-021. Pacific attributes its missed objective to weather. Report of November 2002 ARMIS Data for Repair Intervals in Compliance with D.01-12-021. ¹¹⁰ D.01-09-058, 2001 Cal. PUC LEXIS 914, at *146, finding of fact 62. ¹¹¹ For residential lines, the coefficient is 1.328 with t-statistic 0.85, not significant at 1% or 5% level (R-square: 0.11, no. of observations: 8). For business lines, the coefficient is 0.204 with t-statistic 0.63, not significant at 1% or 5% level (R-square: 0.06, no. of observations: 8). ¹¹² For residential lines, the coefficient is 12.76 with t-statistic 3.50, significant at 1% level (R-square: 0.47, no. of observations: 16). For business lines, the coefficient is -1.41 with t-statistic -1.45, not significant at 1% or 5% level (R-square: 0.13, no. of observations: 16). ¹¹³ For residential lines, the coefficient is 0.44 with t-statistic 1.01, not significant at 1% or 5% level (R-square: 0.15, no. of observations: 8). For business lines, the coefficient is -0.13 with t-statistic -0.85, not significant at 1% or 5% level (R-square: 0.11, no. of observations: 8). ¹¹⁴ For residential lines, the coefficient is -6.73 with t-statistic -4.99, significant at 1% level (R-square: 0.64, no. of observations: 16). For business lines, the coefficient is -5.48 with t-statistic -7.25, significant at 1% level (R-square: 0.79, no. of observations: 16). ¹¹⁵ For residential lines, the coefficient is -19.49 with t-statistic -5.32, significant at 1% level (R-square: 0.67, no. of observations: 16). For business lines, the coefficient is -4.07 with t-statistic -5.17, significant at 1% level (R-square: 0.66, no. of observations: 16). ¹¹⁶ For residential lines, the coefficient is 0.855 with t-statistic 0.59, not significant at 1% or 5% level (R-square: 0.06, no. of observations: 8). For business lines, the coefficient is 0.234 with t-statistic 0.58, not significant at 1% or 5% level (R-square: 0.05, no. of observations: 8). ¹¹⁷ For residential lines, the coefficient is 15.08 with t-statistic 4.6, significant at 1% level (R-square: 0.60, No. of observations: 16). For business lines, the coefficient is -0.04 with t-statistic -0.04, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 16). ¹¹⁸ For residential lines, the coefficient is 0.6 with t-statistic 1.45, not significant at 1% or 5% level (R-square: 0.26, no. of observations: 8). For business lines, the coefficient is 0.08 with t-statistic 0.47, not significant at 1% or 5% level (R-square: 0.03, no. of observations: 8). ¹¹⁹ For residential lines, the coefficient is -6.68 with t-statistic -4.83, significant at 1% level (R-square: 0.62, no. of observations: 16). For business lines, the coefficient is -5.77 with t-statistic -7.61, significant at 1% level (R-square: 0.80, no. of observations: 16). ¹²⁰ The coefficient is -21.76 with t-statistic -6.59, significant at 1% level (R-square: 0.76, no. of observations: 16). The coefficient is -5.73 with t-statistic -5.93, significant at 1% level (R-square: 0.72, no. of observations: 16). ¹²¹ For residential lines, the coefficient is 0.073 with t-statistic 0.05, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 8). For business lines, the coefficient is -0.875 with t-statistic 2.49, significant at 5% level (R-square: 0.51, no. of observations: 8). ¹²² For residential lines, the coefficient is 11.50 with t-statistic 2.9, significant at 5% level (R-square: 0.38, no. of observations: 16). For business lines, the coefficient is 0.18 with t-statistic 0.11, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 16). ¹²³ For residential lines, the coefficient is 0.69 with t-statistic 2.55, significant at 5% level (R-square: 0.52, no. of observations: 8). For business lines, the coefficient is 0.02 with t-statistic 0.19, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 8). ¹²⁴ For residential lines, the coefficient is -13.37 with t-statistic -6.34, significant at 1% level (R-square: 0.74, no. of observations: 16). For business lines, the coefficient is -6.15 with t-statistic -5.06, significant at 1% level (R-square: 0.65, no. of observations: 16). ¹²⁵ For residential lines, the coefficient is -24.87 with t-statistic -7.00, significant at 1% level (R-square: 0.78, no. of observations: 16). For business lines, the coefficient is -6.32 with t-statistic -5.75, significant at 1% level (R-square: 0.70, no. of observations: 16). ¹²⁶ For residential lines, the coefficient is 0.495 with t-statistic 0.31, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 8). For business lines, the coefficient is -0.752 with t-statistic 1.92, not significant at 1% or 5% level (R-square: 0.38, no. of observations: 8). ¹²⁷ For residential lines, the coefficient is 12.19 with t-statistic 3.22, significant at 1% level (R-square: 0.43, no. of observations: 16). For business lines, the coefficient is 1.82 with t-statistic 1.25, not significant at 1% or 5% level (R-square: 0.10, no. of observations: 16). ¹²⁸ Ex. 2B:133 at 13 (Hieta Opening Testimony). According to its witness, ORA based these figures on an analysis of raw repair data Pacific furnished ORA. Pacific used the raw repair data to calculate ARMIS numbers for the years 2000 and 2001. Id. at 12. ¹²⁹ For residential lines, the coefficient is 0.77 with t-statistic 2.54, significant at 5% level (R-square: 0.52, no. of observations: 8). For business lines, the coefficient is 0.16 with t-statistic 0.97, not significant at 1% or 5% level (R-square: 0.14, no. of observations: 8). ¹³⁰ For residential lines, the coefficient is -13.59 with t-statistic -7.33, significant at 1% level (R-square: 0.79, no. of observations: 16). For business lines, the coefficient is -7.22 with t-statistic -6.78, significant at 1% level (R-square: 0.77, no. of observations: 16). ¹³¹ For residential lines, the coefficient is -25.79 with t-statistic -7.26, significant at 1% level (R-square: 0.79, no. of observations: 16). For business lines, the coefficient is -9.04 with t-statistic -8.09, significant at 1% level (R-square: 0.82, no. of observations: 16). ¹³² Pacific Opening/ Service Quality at 18. ¹³³ For residential lines, the coefficient is -0.096 with t-statistic -1.40, not significant at 1% or 5% level (R-square: 0.25, no. of observations: 8). For business lines, the coefficient is -0.079 with t-statistic 1.32, not significant at 1% or 5% level (R-square: 0.22, no. of observations: 8). ¹³⁴ For residential lines, the coefficient is -0.03 with t-statistic -0.11, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 16). For business lines, the coefficient is 0.60 with t-statistic 1.65, not significant at 1% or 5% level (R-square: 0.16, no. of observations: 16). ¹³⁵ Exh. 2B:132 at 8 (Young Opening Testimony). ¹³⁶ Exh. 2B:355 at 9 (Hauser Reply Testimony). ¹³⁷ For residential lines, the coefficient is -0.2 with t-statistic -0.92, not significant at 1% or 5% level (R-square: 0.12, no. of observations: 8). For business lines, the coefficient is -0.17 with t-statistic -0.64, not significant at 1% or 5% level (R-square: 0.06, no. of observations: 8). ¹³⁸ For residential lines, the coefficient is 0.46 with t-statistic 0.85, not significant at 1% or 5% level (R-square: 0.05, no. of observations: 16). For business lines, the coefficient is 1.32 with t-statistic 1.97, not significant at 1% or 5% level (R-square: 0.22, no. of observations: 16). ¹³⁹ For residential lines, the coefficient is 0.5 with t-statistic 0.96, not significant at 1% or 5% level (R-square: 0.06, no. of observations: 16). For business lines, the coefficient is 0.72 with t-statistic 1.2, not significant at 1% or 5% level (R-square: 0.09, no. of observations: 16). ¹⁴⁰ The coefficient is -1.287 with t-statistic -2.02, not significant at 1% or 5% level (R-square: 0.31, no. of observations: 11). In comparison with the reference group, the coefficient is -14.10 with t-statistic -4.21, significant at 1% level (R-square: 0.46, no. of observations: 22). ¹⁴¹ The coefficient is 7.95 with t-statistic 4.28, significant at 1% level (R-square: 0.67, no. of observations: 11). ¹⁴² The coefficient is 27.03 with t-statistic 2.71, significant at 5% level (R-square: 0.27, no. of observations: 22). ¹⁴³ The coefficient is 12.9 with t-statistic 1.29, not significant at 1% or 5% level (R-square: 0.08, no. of observations: 22). ¹⁴⁴ For Pacific, the coefficient is zero with t-statistic zero, not significant at 1% or 5 % level (R-square: 0.00, no. of observations: 6). For Verizon, the coefficient is -0.01 with t-statistic -4.02, significant at 1% level (R-square: 0.64, no. of observations: 11). ¹⁴⁵ For the number of occurrences over two minutes per switch, the coefficient is 0.019 with t-statistic 0.80, not significant at 1% or 5 % level (R-square: 0.14, no. of observations:6). For the percent unscheduled, the coefficient is -0.015, with t statistic -0.57, not significant at 1% or 5% level (R-square: 0.01, no. of observations: 6). ¹⁴⁶ The coefficient is -0.016 with t-statistic -2.95, significant at 5% level (R-square: 0.69, no. of observations: 6). ¹⁴⁷ For the number of occurrences under two minutes, the coefficient is -0.04, with t-statistic -4.63, significant at 1% level (R-square: 0.70, no. of observations: 11). For the percent unscheduled, the coefficient is 0.05 with t-statistic 3.65, significant at 1% level (R-square: 0.60, no. of observations: 11). ¹⁴⁸ For residential lines, the coefficient is -0.038 with t-statistic -1.15, not significant at 1% or 5% level (R-square: 0.13, no. of observations: 11). For business lines, the coefficient is -0.176 with t-statistic -4.51, significant at 1% level (R-square: 0.69, no. of observations: 11). ¹⁴⁹ For residential lines, the coefficient is 0.27 with t-statistic 2.02, not significant at 1% or 5% level (R-square: 0.17, no. of observations: 22). For business lines, the coefficient is 1.05 with t-statistic 2.84, significant at 5% level (R-square: 0.29, no. of observations: 22). ¹⁵⁰ For residential lines, the coefficient is -0.05 with t-statistic -0.69, not significant at 1% or 5% level (R-square: 0.05, no. of observations: 11). For business lines, the coefficient is -0.05 with t-statistic -0.43, not significant at 1% or 5% level (R-square: 0.02, no. of observations: 11). ¹⁵¹ For residential lines, the coefficient is 0.22 with t-statistic 0.86, not significant at 1% or 5% level (R-square: 0.04, no. of observations: 22). For business lines, the coefficient is -0.48 with t-statistic -1.02, not significant at 1% or 5% level (R-square: 0.05, no. of observations: 22). ¹⁵² For residential lines, the coefficient is -0.05 with t-statistic -0.21, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 22). For business lines, the coefficient is -1.53 with t-statistic -3.68, significant at 1% level (R-square: 0.40, no. of observations: 22). ¹⁵³ The FCC's Merger Compliance Oversight Team maintains a website reflecting the reported results of Pacific ( http://www.fcc.gov/wcb/mcot/SBC_AIT/) and Verizon ( http://www.fcc.gov/wcb/mcot/BA_GTE/). See also Exhibit (Exh.) 2B:507 at 22-23 (Schilberg Direct Testimony describing MCOT reporting). Exhibit 2B:507 refers to Exhibit 507 from Phase 2B of this proceeding. ¹⁵⁴ FCC 99-279, October 6, 1999, Appendix C, Condition XXIV, ¶ 62, available at http://www.fcc.gov/wcb/mcot/SBC_AIT/compliance_program/. ¹⁵⁵ National Association of Regulatory Utility Commissioners. ¹⁵⁶ The NARUC Service Quality White Paper is available at http://www.fcc.gov/Bureaus/Common_Carrier/Public_Notices/1999/da992441.txt.

¹⁵⁷ Letter from Dorothy Atwood, Chief, FCC Common Carrier Bureau, to Mr. James W. Calloway, Group President - SBC Services, dated October 6, 2000, available at http://www.fcc.gov/wcb/mcot/SBC_AIT/service_quality/. We may take official notice of this letter pursuant to Commission Rule 73.

¹⁵⁸ http://www.fcc.gov/wcb/mcot/SBC_AIT/service_quality/OP1.pdf. ¹⁵⁹ http://www.fcc.gov/wcb/mcot/SBC_AIT/service_quality/RE3.pdf. ¹⁶⁰ http://www.fcc.gov/wcb/mcot/SBC_AIT/service_quality/IN1.pdf. ¹⁶¹ http://www.fcc.gov/wcb/mcot/SBC_AIT/service_quality/IN2.pdf. ¹⁶² http://www.fcc.gov/wcb/mcot/SBC_AIT/service_quality/data.xls ¹⁶³ For residential customers, the coefficient is -1.36 with t-statistic -3.12, significant at 1% level (R-square: 0.34, no. of observations: 21). For business customers, the coefficient is -0.46 with t-statistic -9.62, significant at 1% level (R-square: 0.83, no. of observations: 21). ¹⁶⁴ For residential lines, the coefficient is -0.46 with t-statistic -9.62, significant at 1% level (R-square: 0.83, no. of observations: 21). For business customers, the coefficient is -1.50 with t-statistic -14.11, significant at 1% level (R-square: 0.91, no. of observations: 21). ¹⁶⁵ For residential lines, the coefficient is -0.04 with t-statistic -3.64, significant at 1% level (R-square: 0.41, no. of observations: 21). For business lines, the coefficient is -0.02 with t-statistic -5.96, significant at 1% level (R-square: 0.65, no. of observations: 21). ¹⁶⁶ The coefficient is zero with t-statistic 0.18, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 12). ¹⁶⁷ The coefficient is 0.003 with t-statistic 5.48, significant at 1% level (R-square: 0.75, no. of observations: 12). ¹⁶⁸ 20 RT 2529-31 (ALJ Thomas' ruling). ¹⁶⁹ FCC 00-221, Condition 51. ¹⁷⁰ We take official notice of this data pursuant to Rule 73. ¹⁷¹ http://www.fcc.gov/wcb/mcot/BA_GTE/service_quality/GTE_States/CU2.pdf. ¹⁷² http://www.fcc.gov/wcb/mcot/BA_GTE/service_quality/GTE_States/OP1.pdf. ¹⁷³ http://www.fcc.gov/wcb/mcot/BA_GTE/service_quality/GTE_States/RE1.pdf. ¹⁷⁴ http://www.fcc.gov/wcb/mcot/BA_GTE/service_quality/GTE_States/RE2.pdf. ¹⁷⁵ http://www.fcc.gov/wcb/mcot/BA_GTE/service_quality/GTE_States/RE3.pdf. ¹⁷⁶ For the residential lines, the coefficient is -0.30 with t-statistic -2.10, not significant at 1% or 5% level (R-square: 0.31, no. of observations: 12). For business lines, the coefficient is -0.21 with t-statistic -0.76, not significant at 1% or 5% level (R-square: 0.05, no. of observations: 12). ¹⁷⁷ For the residential lines, the coefficient is 0.74 with t-statistic 1.24, not significant at 1% or 5% level (R-square: 0.13, no. of observations: 12). For business lines, the coefficient is -0.33 with t-statistic -0.35, not significant at 1% or 5% level (R-square: 0.01, no. of observations: 12). ¹⁷⁸ For business lines, the coefficient is 0.25 with t-statistic 0.35, not significant at 1% or 5% level (R-square: 0.01, no. of observations: 12). ¹⁷⁹ For the residential lines, the coefficient is 0.83 with t-statistic 1.24, not significant at 1% or 5% level (R-square: 0.13, no. of observations: 12). For business lines, the coefficient is 0.24 with t-statistic 1.73, not significant at 1% or 5% level (R-square: 0.23, no. of observations: 12). ¹⁸⁰ For the residential lines, the coefficient is 0.09 with t-statistic 0.71, not significant at 1% or 5% level (R-square: 0.05, no. of observations: 12). For business lines, the coefficient is zero with t-statistic -0.06, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 12). ¹⁸¹ For the residential lines, the coefficient is -0.005 with t-statistic -0.28, not significant at 1% or 5% level (R-square: 0.00, no. of observations: 12). For business lines, the coefficient is -0.004 with t-statistic -0.74, not significant at 1% or 5% level (R-square: 0.05, no. of observations: 12). ¹⁸² For the residential lines, the coefficient is 0.10 with t-statistic 0.57, not significant at 1% or 5% level (R-square: 0.03, no. of observations: 12). For business lines, the coefficient is 0.14 with t-statistic 0.63, not significant at 1% or 5% level (R-square: 0.36, no. of observations: 12). ¹⁸³ For the business lines, the coefficient is approximately zero with t-statistic 1.19, not significant at 1% or 5% level (R-square: 0.36, no. of observations: 12). ¹⁸⁴ For the residential lines, the coefficient is -0.001 with t-statistic -2.39, significant at 5% level (R-square: 0.36, no. of observations: 12). ¹⁸⁵ For the residential lines, the coefficient is -1.71 with t-statistic -2.99, significant 5% level (R-square: 0.47, no. of observations: 12).


Pacific vs Reference Group
			ARMIS Data

		Worse	Better	Inconclusive
	Residential	Repair Interval	Trouble Reports	Installation Interval
		-Initial Out of Service	-Initial	Installation Commit. Met
		-Repeat Out of Service	-Repeat
		-Initial All Other	-Initial Out of Service
		-Repeat All Other	-Repeat Out of Service
			-Initial All Other
			-Repeat All Other

	Subtotal	4	6	2

	Business		Trouble Reports	Repair Interval
			-Initial	-Initial Out of Service
			-Repeat	-Repeat Out of Service
			-Initial Out of Service	-Initial All Other
			-Repeat Out of Service	-Repeat All Other
			-Initial All Other
			-Repeat All Other	Installation Interval

			Installation Commit. Met

	Subtotal	0	7	5

	Bus/Res		Downtime per Switch

	Subtotal	0	1	0
	Total	4	14	7



Pacific Performance Trends
			ARMIS Data

		Worse	Better	Inconclusive
	Residential	Trouble Reports		Installation Interval
		-Initial All Other		Installation Commit. Met
		-Repeat All Other
				Trouble Reports
				-Initial
				-Repeat
				-Initial Out of Service
				-Repeat Out of Service

				Repair Interval
				-Initial Out of Service
				-Repeat Out of Service
				-Initial All Other
				-Repeat All Other
	Subtotal	2	0	10

	Business	Installation Commit. Met	Trouble Reports	Installation Interval
			-Initial
			-Repeat	Trouble Reports
			-Repeat Out of Service	-Initial Out of Service
			-Initial All Other
			-Repeat All Other	Repair Interval
				-Initial Out of Service
			Repair Interval	-Repeat Out of Service
			-Initial All Other	-Repeat All Other


	Subtotal	1	6	5

	Bus/Res		Under 2 min per switch	Downtime per Switch
				Switches Down
				Over 2 min per switch
				% Unscheduled
	Subtotal	0	1	4
	Total	3	7	19



Verizon vs Reference Group
			ARMIS Data

		Worse	Better	Inconclusive
	Residential		Trouble Reports	Installation Interval
			-Initial	Installation Commit. Met
			-Repeat
			-Initial Out of Service
			-Repeat Out of Service
			-Initial All Other
			-Repeat All Other

			Repair Interval
			-Initial Out of Service
			-Repeat Out of Service
			-Initial All Other
			-Repeat All Other

	Subtotal	0	10	2

	Business		Trouble Reports	Trouble Reports
			-Initial	-Initial All Other
			-Repeat	-Repeat All Other
			-Initial Out of Service
			-Repeat Out of Service	Installation Interval
				Installation Commit. Met
			Repair Interval
			-Initial Out of Service
			-Repeat Out of Service
			-Initial All Other

	Subtotal	0	8	4

	Bus/Res			Downtime per Switch

	Subtotal	0	0	1
	Total	0	18	7



Verizon PerformanceTrends
			ARMIS Data

		Worse	Better	Inconclusive
	Residential	Repair Interval	Trouble Reports	Installation Interval
		-Initial All Other	-Initial	Installation Commit. Met
		-Repeat All Other	-Repeat
				Trouble Reports
				-Initial Out of Service
				-Repeat Out of Service
				-Initial All Other
				-Repeat All Other

				Repair Interval
				-Initial Out of Service
				-Repeat Out of Service

	Subtotal	2	2	8

	Business		Trouble Reports	Installation Interval
			-Initial	Installation Commit. Met
			-Repeat
			-Repeat Out of Service	Trouble Reports
			-Initial All Other	-Repeat Out of Service
			-Repeat All Other
				Repair Interval
				-Initial Out of Service
				-Repeat Out of Service
				-Initial All Other
				-Repeat All Other

	Subtotal	0	5	7

	Bus/Res	Downtime per Switch	Under 2 min per switch
		% Unscheduled	Switches Down


	Subtotal	2	2	0
	Total	4	9	15
